If you are in the market for an industrial shell and tube heat exchanger, you have likely come across the acronym TEMA. But what exactly does it mean, and why does simply specifying it on a purchase order not necessarily guarantee a successful project?
When investing in critical process equipment, whether for power generation, chemical processing, nuclear applications, or general manufacturing, understanding engineering standards is key to ensuring asset longevity. However, many procurement managers fall into the trap of treating TEMA compliance as a basic commodity.
Below, we break down what TEMA actually covers, how it layers alongside mandatory legal codes, and the dangerous design-to-fabrication disconnect you must avoid to protect your facility from premature equipment failure.
What is TEMA?
TEMA stands for the Tubular Exchanger Manufacturers Association. Founded in 1939, TEMA is a trade association of leading heat exchanger manufacturers that pioneered the global standard for the mechanical design, fabrication, and testing of shell and tube heat exchangers.
While regional pressure vessel codes focus primarily on overall pressure containment and safety, TEMA standards go one step further. TEMA focuses specifically on the intricate mechanical layout, thermal performance, and practical design of shell and tube heat exchangers. Built upon decades of cumulative manufacturing experience and operational lessons learned, the standard translates these hard-won insights into a definitive framework of engineering best practices, ensuring individual project teams do not have to learn these costly mechanical and operational limitations firsthand.
For industrial applications, the TEMA standard should be considered your minimum level of acceptance. While your specific project requirements may occasionally exceed TEMA guidelines, they should very rarely fall below them.
The Three TEMA Mechanical Classes
TEMA categorises heat exchangers into three distinct classes based on the severity of the intended service and the target industry:
- TEMA Class R (Petroleum/Refinery): Designed for severe duties typical of petroleum refining and related large-scale chemical processes. These feature the most robust design requirements to ensure maximum reliability.
- TEMA Class C (Commercial/General Service): Designed for moderate commercial and general process applications. This is the most economically optimised class for standard industrial use.
- TEMA Class B (Chemical Process): Tailored for chemical process service where the operating conditions are relatively severe, but don’t quite require the extreme ruggedness of Class R.
How Regulations, Design Codes, and Standards Layer Together
To understand the true value of TEMA, it helps to look at how different technical documents layer on top of each other like a stack. A heat exchanger's design is rarely determined by a single document. Instead, engineers must navigate a hierarchy of statutory laws, mechanical design codes, and manufacturing standards to address everything from public safety to complex process chemistry.
For standard industrial applications, a project typically requires compliance across the first three layers. However, highly regulated fields, such as the nuclear, aerospace, or petrochemical sectors, will overlay a fourth tier of bespoke guidelines.
Here is how that engineering framework builds up from the ground floor:
Layer 1: Statutory Legislation (The Legal Mandate)
At the absolute foundation is the mandatory legal framework of the jurisdiction where the equipment will operate. Before a single calculation is made, the heat exchanger must comply with local statutory safety laws. Compliance here is non-negotiable and dictates whether the equipment must be designed to a formal pressure vessel code. These legal frameworks vary by region:
- UK & Europe: Enforces mandatory UKCA marking (Great Britain) under the Pressure Equipment (Safety) Regulations (PS(E)R) or CE marking (Europe) under the Pressure Equipment Directive (PED) to meet strict Essential Safety Requirements (ESRs).
- North America: Mandates state or provincial jurisdictional registration (such as National Board registration or CRN numbers in Canada).
- Rest of World: Local statutory frameworks (such as AS/NZS 1200 in Australia) dictate regional legal compliance.
Layer 2: The Base Pressure Vessel Code (The Safety Blueprint)
Once legislation dictates that the vessel falls under pressure regulations, engineers select a recognised, legally approved design code to satisfy those statutory laws. This layer focuses strictly on pressure containment and structural safety. Common design codes include PD 5500, EN 13445, or ASME Section VIII. This layer calculates mandatory pressure-boundary wall thicknesses, shell stresses, and strict welding criteria to ensure the vessel will never catastrophically fail under pressure.
Layer 3: The Mechanical Excellence Standard (TEMA)
Because basic pressure vessel codes do not cover the unique mechanical and thermal nuances specific to heat exchangers, TEMA sits directly on top of the design code. It fills the critical operational gaps by standardising component clearances across the entire unit, defining industry-standard nomenclature, mandating precise fabrication tolerances, and providing formulas to prevent flow-induced vibrations. For the vast majority of clients, a TEMA-compliant exchanger represents the gold standard for reliable mechanical design.
Layer 4: Industry & Client-Specific Specifications (The Asset Overlay)
In highly specialised or high-consequence industries, clients overlay their own unique engineering standards or broader industry specifications on top of TEMA to tailor the unit to extreme environments:
- Oil & Gas (API 660 / ISO 16812): Adds prescriptive rules specifically for harsh refinery environments, mandating features like minimum corrosion allowances and specific floating head details.
- The Nuclear Sector: Projects often introduce stringent nuclear-grade material traceability and non-destructive testing overlays.
- Proprietary Client Specs: Large global operators frequently have their own internal engineering standards that sit on top of TEMA to harmonise equipment across their specific sites. (Note: International bodies, such as the IOGP with their S-614 standard, actively work to combine and standardise these fragmented client requirements into unified procurement templates.)
What Do Clients Need to Know About TEMA?
When ordering or specifying a heat exchanger, you don't need to be a heat exchanger engineering expert, but keeping these key TEMA features in mind will streamline your procurement process:
1. The TEMA Standard Nomenclature TEMA utilises a highly efficient three-letter designation system to define the exact configuration of a heat exchanger.
- First Letter: Indicates the front head type (e.g., A, B, C, N, D).
- Second Letter: Indicates the shell type (e.g., E, F, G, H, J, K, X).
- Third Letter: Indicates the rear head type (e.g., L, M, N, P, S, T, U, W).
Example: A TEMA Type BEM exchanger features a bonnet front head, a one-pass shell, and a fixed tubesheet rear head.
Even if you aren't sure of your specific requirements yet, understanding TEMA nomenclature will allow you to engage effectively with engineers and follow the reasoning behind their design decisions.
2. Lifecycle Scope: Beyond Just Nomenclature While many users only interact with TEMA for its three-letter nomenclature, the standard goes much deeper. It is a comprehensive lifecycle document that governs the entire lifespan of the equipment. A TEMA-compliant design explicitly covers:
- Fabrication Tolerances: Ensuring precise mechanical fit and structural alignment.
- Flow-Induced Vibration Analysis: Preventing premature tube failures.
- Installation, Operation, and Maintenance (IOM): Providing clear blueprints for safe commissioning and long-term servicing.
Why Specifying a TEMA-Compliant Heat Exchanger Benefits You
Investing in a TEMA-standard heat exchanger offers distinct commercial and operational advantages:
- Guaranteed Safety and Reliability: Process plants handle high-temperature, high-pressure, and often hazardous fluids. TEMA’s rigorous design formulas account for flow-induced vibrations, thermal stress, and corrosion allowances, drastically reducing the risk of catastrophic field failures.
- Lower Total Cost of Ownership (TCO): While a non-standard or under-designed exchanger might have a lower upfront cost, it often leads to frequent maintenance, leaks, and unplanned downtime. TEMA heat exchangers are engineered for longevity, offering a much higher return on investment over their operational lifespan.
- Designed with Ease of Maintenance and Part Replacement in Mind: A primary strength of the TEMA standard is its heavy focus on the practical, long-term servicing of the equipment. Because TEMA strictly standardises internal clearances, tube pitches, and physical configurations, routine maintenance and cleaning are exceptionally straightforward. Whether performing scheduled inspections or replacing wear-and-tear components like gaskets, bolting, headers or entire tube bundles over the exchanger's lifespan, the standardised dimensions ensure that replacement parts fit precisely, eliminating the headaches, custom modifications, and lengthy downtime associated with non-standard designs.

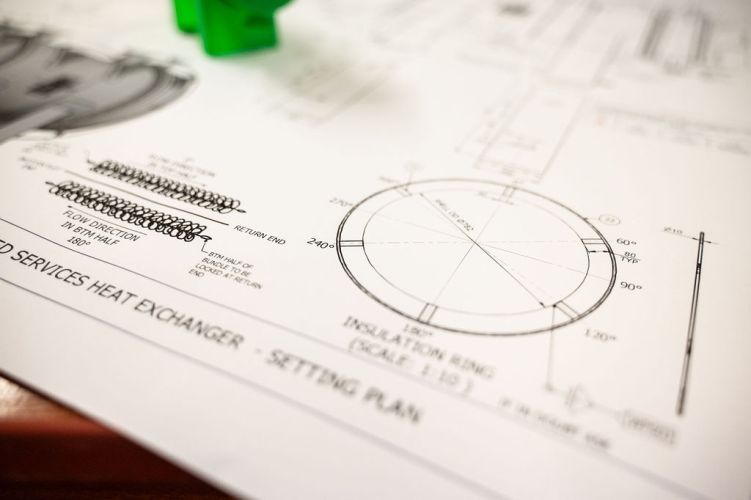

Beyond the Datasheet: Why "TEMA Compliant" Doesn't Guarantee Success
While specifying TEMA is a vital first step, it is only half the battle. A flawless piece of paper does not guarantee a flawless piece of equipment. In the heat exchanger industry, many suppliers operate under a highly fragmented model: they are either a pure fabrication shop or they are a pure design house. This division of labour introduces a dangerous disconnect that frequently leads to operational failure:
The Build-to-Print Fabricator (No Design Depth)
A standard fabrication shop is excellent at welding, but they often do not understand what they are actually building or why the tolerances on the drawing are so unforgiving.
The Risk: They might look at a tight baffle clearance and think a millimetre of deviation doesn't matter, not realising that even a tiny gap allows fluid to bypass the tubes entirely, destroying the thermal efficiency of the unit. They might expand tubes into the tubesheet without the precise, torque-controlled calibration required to prevent stress corrosion cracking, simply because they don't understand the underlying process and mechanical conditions of your process.
The Third-Party Design House (No Practical Shop Experience)
On the other side, many suppliers outsource their engineering to independent design houses. These engineers are brilliant at theoretical calculations, but they rarely step foot on a shop floor.
The Risk: A fundamental failure to apply true Design for Manufacture (DFM) principles. While following standard TEMA rules helps bridge the structural gap between a base pressure vessel code and heat exchanger geometry, those rules function primarily as a prescriptive baseline, they do not consider the underlying operational reasons why specific choices must be made. Without this deeper understanding of manufacturing realities, it is remarkably easy for a design house to make poor material selections or specify geometric configurations that look mathematically perfect on a screen but are practically impossible, exceptionally difficult to maintain, and highly vulnerable to premature equipment failure. When these issues inevitably manifest during fabrication or out in the field, it triggers an expensive cycle of finger-pointing, where the fabricator blames a flawed theoretical design and the design house blames poor workmanship.
The Solution: Seamless Integration Under One Roof
To eliminate this risk, you need an engineering partner that completely closes this gap. By keeping process, thermal, and mechanical design engineers in the same building as the fabrication team, the "why" and the "how" are never separated.
- Advanced Integrated Engineering: A high-end specialist partner does not rely solely on basic TEMA formulas. Instead, integrated teams utilise advanced thermal simulation software and Finite Element Analysis (FEA) to predict and eliminate localised stress concentrations, cyclic thermal fatigue, and complex nozzle loads well before fabrication begins.
- Intelligent Craftsmanship: Because the fabricators work side-by-side with the design engineers, they understand the critical nature of precise tube-to-tubesheet expansion, baffle alignment, and vibration mitigation.
When you partner with a fully integrated specialist, you aren't just buying a TEMA-stamped vessel. You are buying a unit that has been process, thermally, and mechanically optimised to perform reliably in your facility from day one.
Is TEMA Enough for Your Project?
| Feature / Capability | Feature / Capability | Integrated Engineering & Fabrication |
|---|
| Baseline TEMA Compliance |
Meets minimum mechanical dimensions |
Exceeds minimums with process-specific design |
| Thermal & Process Design |
None (Relies entirely on client or third-party datasheets) |
Fully integrated, in-house chemical and thermal engineering |
| Vibration Analysis |
Standard, basic TEMA calculations only |
Advanced, multi-point kinetic and thermal simulations |
| High-Stress & Cyclic Duties |
Blind to localised stress concentrations |
In-house Finite Element Analysis (FEA) to eliminate fatigue risks |
| Understanding the "Why" |
Often treats crucial clearances as mere fabrication tolerances | |
Precision execution (e.g., torque-controlled expansion) tied to process requirements |
| Project Responsibility |
Fragmented (Finger-pointing between shop and third-party designers) |
Single-source accountability from thermal design to the final weld |
The Takeaway: If your process involves standard, low-risk utility fluids, a basic TEMA fabrication shop might get the job done. But if your process involves critical temperatures, high pressures, cyclic thermal stress, or downtime that causes massive revenue losses by the hour, relying on a basic fabricator is a gamble. You need an integrated design and fabrication partner to turn TEMA standards into reliable plant performance.
